200m Deep CSD200 Borehole Water Well Drilling Truck

Name: 200m Deep CSD200 Borehole Water Well Drilling Truck
Brand: JCDRILL
Price: 1 USD

200m Deep CSD200 Borehole Water Well Drilling Truck Manufactures

Brand Name : JCDRILL

Model Number : CSD200

Certification : CE, ISO

Place of Origin : China

MOQ : 1 Set

Price : Negotiation

Payment Terms : L/C, T/T

Supply Ability : 2000 sets/year

Delivery Time : 30-45 days

Packaging Details : 40HQ

Geology Drilled : All Kinds

Drilling Type : DTH & Mud Rotary

Drill Operation : Hydraulic

Feed Stroke : 3400mm

Lifting Force of Hoist : 0.8T

Length of Steel Wire Rope : 100m

Contact Now

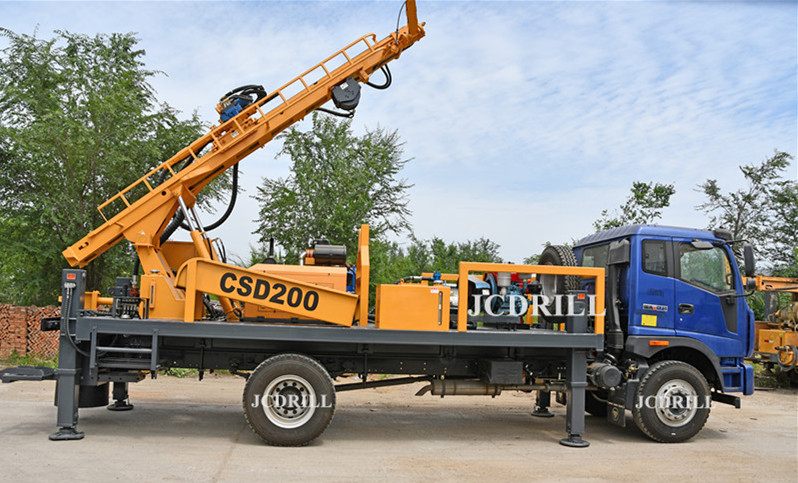

200m Deep Drilling Machine CSD200 from JCDRILL
CSD200 deep water well drilling rigs, in cutting drilling or rotary drilling can be operated in unconsolidated layer, and the slag can be discharged under by mud, the impact drilling operation can also be adopted and slag can be discharged by pressure air, the hydraulic water well drilling rig suitable for drilling complicated geological conditions.

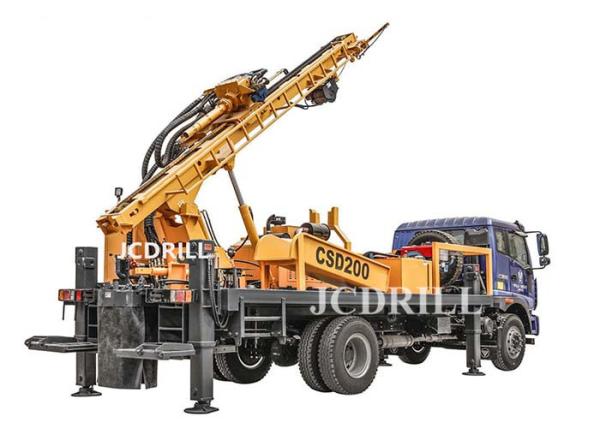

200m Deep CSD200 Borehole Water Well Drilling Truck
Specification

1	Geology drilled		All kinds
2	Drilling Type		DTH & Mud Rotary
3	Drill system and operation		Hydraulic
4	Hole Diameter	mm	Φ90—Φ325
5	Hole Depth	m	200
6	Rotation Torque	Nm	4800
7	Rotation Speed	rpm	0-102
8	Drill pipe diameter	mm	76,89,102,114
9	Drill pipe length	mm	3000
10	Max. Lifting force	Ton	12
11	Max. Feed Speed	M/min	18
12	Feed Stroke	mm	3400
Winch
13	Lifting force of hoist	T	0.8
14	Length of steel wire rope(tool winch)	m	100
Engine
15	Diesel Engine type	Yuchai
16	Rated Horse power	Kw	81
17	Electrical System	V	24
Compressor required(Optional)
18	Compressor Type	Rotary Screw/Movable
19	Pressure Required	Mpa	1.2—3.0
20	Air consumption	m³/min	11—35
Truck
21	Manufacturer		Foton Aoling
24	Rated Horse power	HP	168
25	Discharge Standard		EU-5
26	Drive type		4X2
27	Max.Speed	Km/h	95
28	Steering wheel		left/right(Optional)
Mud Pump
29	Type		Hydrulic
30	Model		BW450
31	Stroke	mm	110
32	Displacement	L/Min	450
33	Discharge pressure (Mpa)	Mpa	5
34	Suction tube diameter	mm	89
35	Discharge pipe diameter	mm	51
36	Liner Diameter	mm	80
Dimension
37	Net Weight	Kg	10800
38	Shipping Length	mm	9100
39	Shipping Width	mm	2550
40	Shipping Height	mm	3400

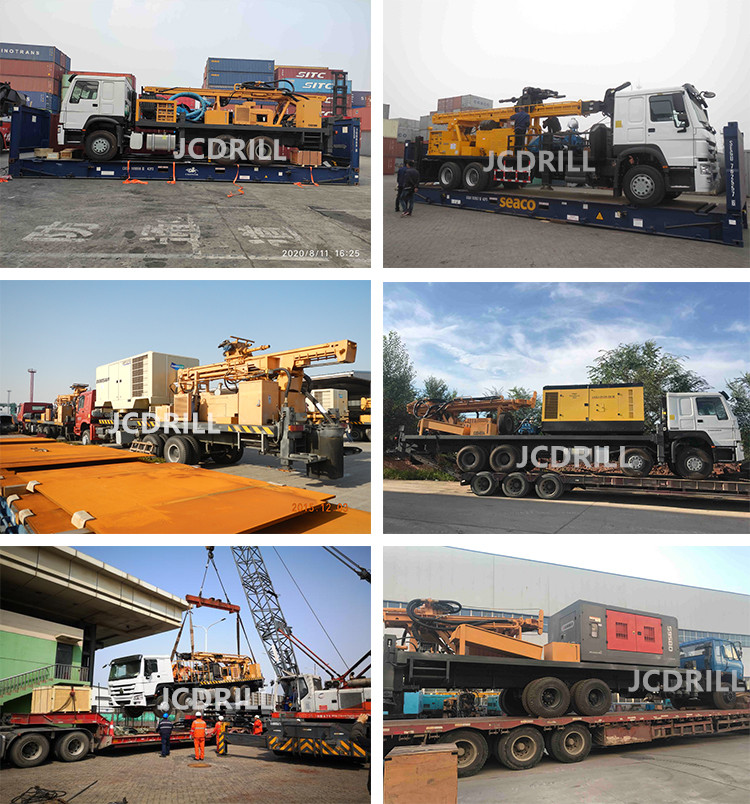

Shipping
